6 Person Hot Tub Dimensions: Will It Fit Your Space?

If you're considering a 6 person hot tub for your backyard, resort, or villa project, the first practical question is whether it will physically fit. A standard six-person spa typically measures between 7 feet and 9 feet in length and width, with a height of 34 to 38 inches. These dimensions vary by model and construction type. Getting the measurements right before purchase saves time, cost, and installation headaches — especially for commercial buyers managing multiple units or tight outdoor footprints.

Understanding the Average Dimensions of a 6 Person Hot Tub

Typical Length, Width, and Height Ranges

Most hard-shell spas for six people have water that is between 29 and 34 inches deep, or 84 to 108 inches (7 to 9 feet) on each side. They are usually set up in squares that are 7'4" x 7'4". A lot of people are 34 to 38 inches tall. These numbers are important because they have a direct effect on where the tub can go, whether it's inside or outside. This is especially true in places like hotels where other amenities are close by.

Inflatable vs. Hard Shell Dimension Differences

These are the bigger inflatables made by Coleman and Intex. Their diameters are 77 to 85 inches, but they sit lower to the ground and don't have durable side shelves. Some models, like those made by Jacuzzi and Hot Spring, have rigid acrylic shells that surround the cabinet and stick out 4 to 6 inches on each side from the water basin. Because of this change, you need to plan for more space around the unit.

How Tub Depth Affects User Comfort and Space

Seats vary in how deep they are for comfort. People who are shorter, like kids or adults, can sit on shallower seats. People who are bigger, on the other hand, can fully immerse their bodies in deeper lounge seats. One full lounge seat and five standard seats with different depths can be found on the iParnassus® P660. This way, each of the six people can find a place that is just right for them. Mixing these different types of seats avoids the "one size fits none" issue that comes with designs where all the seats are the same. Also, the tub has a small overall area, and it can fit people of different sizes.

How to Determine If a 6 Person Hot Tub Will Fit Your Space

Measuring Your Installation Site Accurately

First, find out how much space you have. Then, cut away at least 24 inches on all sides to make room for service and entry. For a standard 7'4" x 7'4" unit, you need at least an 11-foot-by-11-foot space to work in. Measure the height from the ground up if the placement is under a deck, pergola, or roof inside. Also, make sure the doorways are big enough and that there is enough space for deliveries. For installation, most hard shell units need a path of at least 36 inches.

Electrical, Plumbing, and Foundation Requirements

For a six-person hard shell spa, you usually need a 240V/50A plug with GFCI protection. The base needs to be strong enough to hold 3,000 to 5,000 pounds when the house is full of water and people. A concrete pad that is at least 4 inches thick and strong is used most of the time. If you want to follow the rules for building in the United States, you might need a permit for long-term or electrical connections. Before you place an order, you should always ask the government in your area what they need. This is very important for business, hotel, or resort projects.

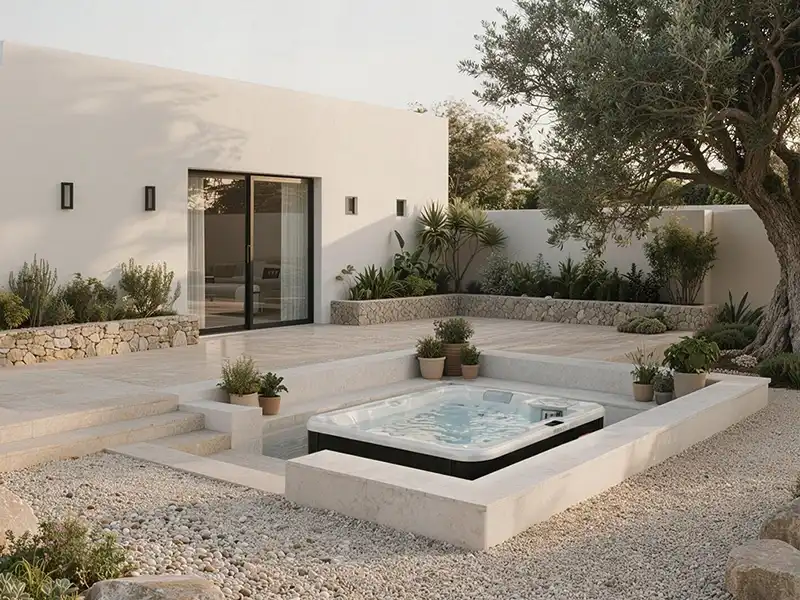

Space-Saving Solutions for Compact Areas

When your garden is small, putting things in corners hides them. Recessed or semi-recessed decks look good on vacation decks that need to look good. Spas can be used all year inside in places that are waterproof, have enough airflow, and have a floor sink. Put two manufacturer spec sheets next to each other and compare the "shell size" and "cabinet size" measurements. This will help you find models that fit your site without sacrificing jet count or seating capacity.

Energy Efficiency and Maintenance Impact Related to Hot Tub Size

Size, Water Volume, and Heating Costs

A spa for six people can hold 300 to 450 gallons of water. It costs more to heat and keep larger amounts of water at the right temperature. In the industry, the average daily cost of electricity for newer, more energy-efficient models is about $1. For older models, the daily cost can be much higher. How well the unit keeps heat in between uses depends on how well the insulation is made, how the shell is put together, and how dense the cover is. This is a big deal for people who care about the environment and for business owners who keep an eye on the energy bills for many units.

Maintenance Clearance and Servicing Access

You have to leave 24 inches of room on all four sides in order to take off the panel, get to the filter, and service the pump. It's not enough to just say that. The diverter valve and air valve on the iParnassus® P660 are placed so that they can be used from inside the 6 man hot tub. That way, you don't have to go outside during normal use to make changes every day. This well-planned placement cuts down on the time that business owners have to spend on maintenance and dealing with new guests.

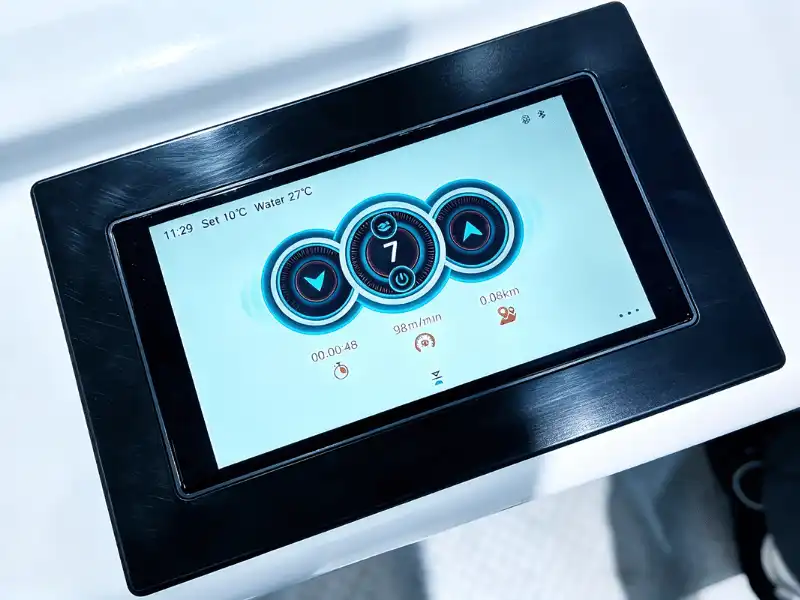

Smart Controls and Long-Term Efficiency

The iParnassus® smart control system lets you keep an eye on the water level and change the temperature from your phone. It also has a single key that you can use to lock and unlock the pool. These features keep units from heating up when they don't need to and let users know about water levels before they become a problem. The owner of a resort or villa with more than one unit will save money and time over the life of the product because they will not have to call for service as often.

Comparing 6 Person Hot Tubs with Other Sizes

Six-Person vs. Four-Person Models

Most spas with room for four people have sides that are 6 to 7 feet long and can hold 200 to 300 gallons of water. It works well for two people on small decks or in small homes. Twelve people is too small for families, social events, and business guests. Six people is better. Also, the number of jets makes a big difference. Four-person models usually have between 20 and 40 jets, but good six-person models like the P660 have 53 jets of different sizes, including 10 5-inch large jets that are only for back treatment. This means that each seat has its own massage function.

Inflatable vs. Hard Shell for Commercial Projects

Even though inflatable spas are cheap and easy to move, they aren't always a good choice for business dining rooms. They don't have solid jet systems, insulation that lasts a long time, or the sturdiness that a hotel or vacation needs. Hard shell units, especially those with two pumps like the P660's two 3HP pumps, offer consistent therapeutic performance that owners and guests expect at a middle to high price range. People who buy in bulk for their business can also make more changes and make sure that more accessories will work with hard shell types.

Emerging Dimension Trends in the Market

Manufacturers are moving toward smaller cabinets with more jets, which means that a smaller cabinet can have more therapeutic functions. Audio integration, LED lights, and waterfalls are features that are no longer extra but are becoming more and more common. As with all competitive six-seat spas, the P660 has a waterfall feature that lights up and four speakers that are mounted in the corners. This shows that fun and hydrotherapy are now thought to go hand in hand.

Installation and Procurement Insights for 6 Person Hot Tubs

Dimension Validation Before Purchase

Before you place an order, do the following five things: compare the shell length, shell width, cabinet height, entry path width, and ceiling clearance to your site plan. This is very important when buying in bulk or for a business. Get the product specification sheet for the 6 man hot tub directly from the maker and match it to your building plans. Changes to measurements can be made now for a lot less money than when they are being shipped or installed.

Before you buy, here are some quick things to think about:

• Shell footprint: Confirm the outer cabinet dimensions, not just the water basin size.
• Weight capacity: Verify your foundation can support 3,000–5,000+ lbs when filled.
• Electrical spec: Confirm 240V/50A GFCI availability at the installation point.
• Access clearance: Check that 24+ inches exist on all serviceable sides.
• Delivery path: Measure all gates, doorways, and turns on the delivery route.

With these five checks, you can avoid the most common maintenance problems that happen when a business buys something. Some of these are roots that need to be made stronger and last-minute changes to the power.

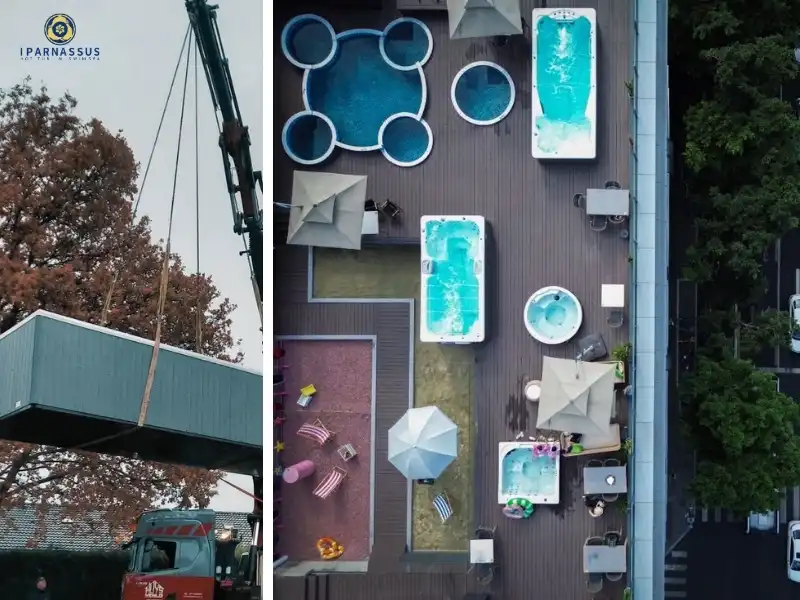

Customization, Logistics, and Accessory Compatibility

The size of the spa affects the shipping weight, freight class, and delivery procedures. This is especially true for projects that are far away or in other countries. There is a built-in lit cup holder and a rippled-patterned tub rim on the iParnassus® P660. You can also buy a music system separately. It's the little things like these that make high-end home and business installations nice. Find out from the 6-person hot tub manufacturer if they offer bundled accessory options and if they can be flexible with the minimum order quantity (MOQ) for large orders to get the best deal.

Conclusion

Getting the right size for a spa for 6 person hot tub is the most important part of setting it up right. The iParnassus® P660 has 53 jets, two 3HP pumps, different seat depths, built-in sound, and smart controls all in a well-thought-out footprint. Furniture for a family garden or pieces for a hotel project can be made from it. iParnassus® has been making spas for 18 years and has 80 patents to back up each one. This gives B2B buyers the technical information they need before placing large orders.

FAQ

1. What is the average footprint of a six-person spa?

Most hard shell six-person models measure between 84 and 108 inches per side (7–9 feet). The most common configuration is approximately 7'4" × 7'4", with a height of 34 to 38 inches. Always account for cabinet dimensions, not just the water basin, when planning your space.

2. Can a six-person hot tub fit in a small backyard?

Yes, with careful planning. Corner placement and semi-inground installation are two approaches that reduce the visual and physical footprint. Choose a model at the lower end of the size range and confirm that your 24-inch maintenance clearance is preserved on at least two sides.

3. How much clearance is needed for maintenance access?

A minimum of 24 inches on all sides is the standard recommendation. This allows access for filter changes, pump servicing, and panel removal. The iParnassus® P660's internally accessible diverter and air valves simplify daily adjustments further.

4. What is the size difference between inflatable and hard shell models?

Inflatable models tend to be wider in diameter but lower in profile. Hard shell models add 4 to 6 inches of cabinet framing on each side. Hard shell units offer greater jet performance, insulation, and durability, making them the standard choice for commercial or long-term residential use.

Connect with iParnassus® — Your Trusted 6 Person Hot Tub Manufacturer

Everything iParnassus® makes is based on our 18 years of experience as a spa engineer. The P660 hot tub has 53 jets, two 3HP fans, a smart app for control, and sound can be added. It can fit 6 person hot tub. It's ready for use at home or in the office. We can make custom sizes, give discounts to distributors and developers who buy in bulk, and give full installation instructions. If you want a brochure and help right away, email info@iparnassus.com with information about your project.
