Swim Spa 4M Installation: Space and Site Requirements

Planning a swim spa 4m installation requires more than picking a spot in your backyard. A 4-meter swim spa like the iParnassus® 4D20 combines powerful swim jets, hydrotherapy seating, and smart controls in a compact footprint — but getting the site right from day one determines whether your investment performs well for decades. This guide walks through everything property owners, hoteliers, and resort developers need to know before the first shovel hits the ground.

Understanding Swim Spa 4M Installation Requirements

The project is set in stone before any tools are brought in. Three things can't be changed: the building's strength, its usability, and the rules in the area.

Ground Load-Bearing Capacity

When it's full, a 4-meter swim spa can weigh anywhere from 3,500 kg to 5,000 kg, depending on how much water is in it and how much each unit weighs. This means that the ground below it can't sink or move under that much weight. Getting a geotechnical study done first is well worth the money because earth that seems solid can become less solid over time if it is weighed down.

Site Accessibility for Delivery and Service

To move things this big, most of the time cranes or trucks are used. Delivery trucks need at least 3 meters of space to get to the installation site. Another important thing is that technicians should be able to get to pumps, filters, and electrical panels without having to move furniture or take apart landscaping.

Building Permits and Code Compliance

Most U.S. cities and towns require licenses for outdoor water features that are deeper than a certain depth or use more electricity than a certain amount. A lot of 4-meter swim spas need their own 240V power outlet. Early on, check with your local building department. It can take anywhere from two weeks to two months to get a permit.

Key Space Dimensions and Layout Guidelines

Accurate measurements taken before installation save a lot of money on rework that costs a lot. The 4D20 has a small but useful size that means it can fit on most homes and light business buildings if the plans are right.

Minimum Clearance Zones

Leave at least 1 meter of space around the box on all four sides. Three things are done in this area: users can safely enter and leave, maintenance workers can get to it, and there is room for decking or privacy screens if needed. Things don't work as well when spaces are too small for a pool and hot tub.

Proximity to Electrical and Plumbing Infrastructure

The cost of installation and the amount of energy lost are both lower when the runs are shorter from your water supply and power panel. The unit shouldn't be more than 10 meters away from your main switch. A voltage drop is more likely when the pipe runs are longer, which makes the pump work less well over time.

Aesthetic and Landscape Integration

The 4D20 takes center stage in any outdoor space thanks to its LED lights and pretty water fountains. The water features make a striking anchor for the eyes at night. It's best to put the unit somewhere where all of its features can be seen from rooms or lounges. This is very important for hotel rooms and courtyards of villas.

Step-by-Step Installation Site Preparation Guide

Good site preparation is where projects succeed or fail. Here is the sequence that experienced installers follow.

Soil Analysis and Base Construction

Start with a soil compaction test. Loose or sandy soil requires either a reinforced concrete pad (minimum 150mm thick with rebar) or a compacted gravel base. The surface must be level within 25mm across the entire footprint. An unlevel base stresses the shell and plumbing over time.

Utility Coordination

Confirm electrical service capacity with your provider before ordering equipment. The 4D20's four pumps and control systems draw significant power during peak operation. Water supply and drainage routing should be marked and confirmed before excavation begins. Coordinate with licensed electricians and plumbers early — scheduling delays here push back the entire project.

Delivery, Placement, and Commissioning

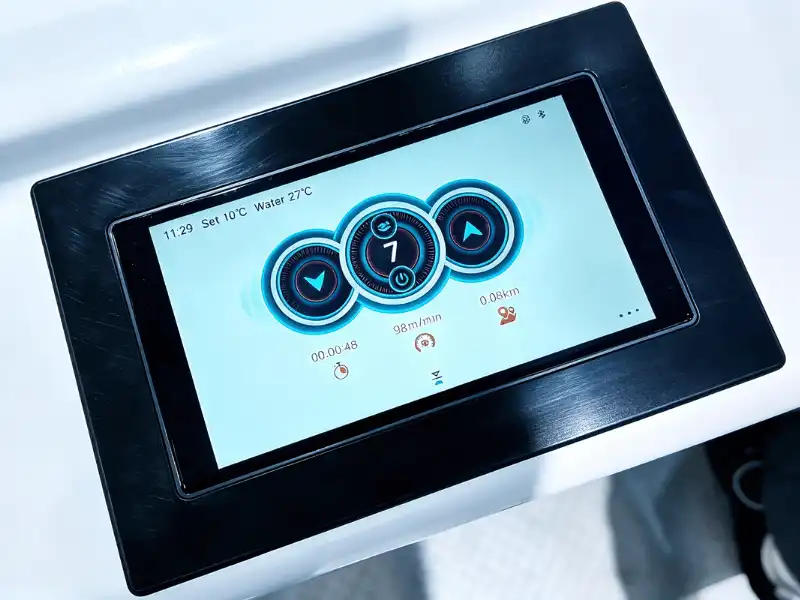

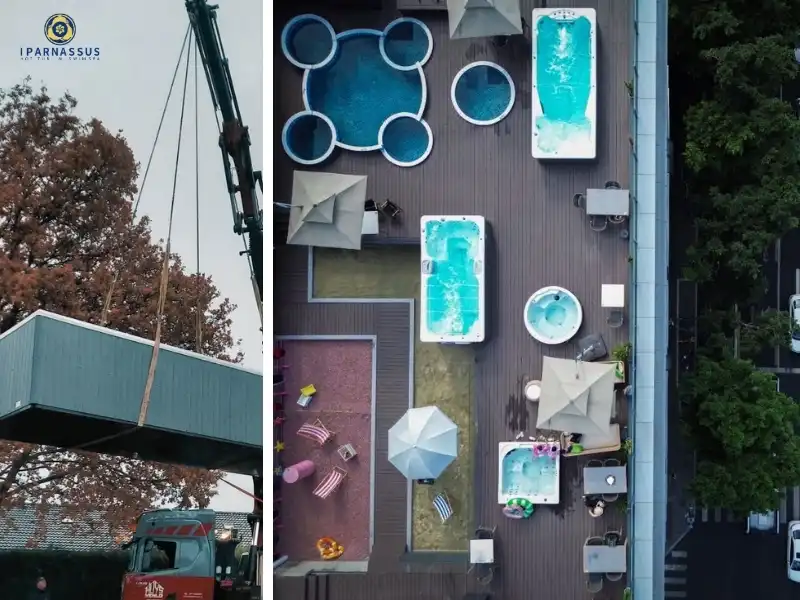

On delivery day, the unit is craned or rigged into position on the prepared base. After placement, leveling shims or adjustable feet bring the unit into final alignment. Once secured, the spa is filled, all jets and pumps are tested, and the smart control system is calibrated. The iParnassus® control panel allows technicians to verify water level sensing, temperature settings, and pump operation from a single touchpoint before handover.

Maintenance and Energy Efficiency Post-Installation

When it is set up right, a swim spa stays clean and works well with little upkeep. If you do these things, the tools and the owner's money will stay safe.

Water Quality and Filter Maintenance

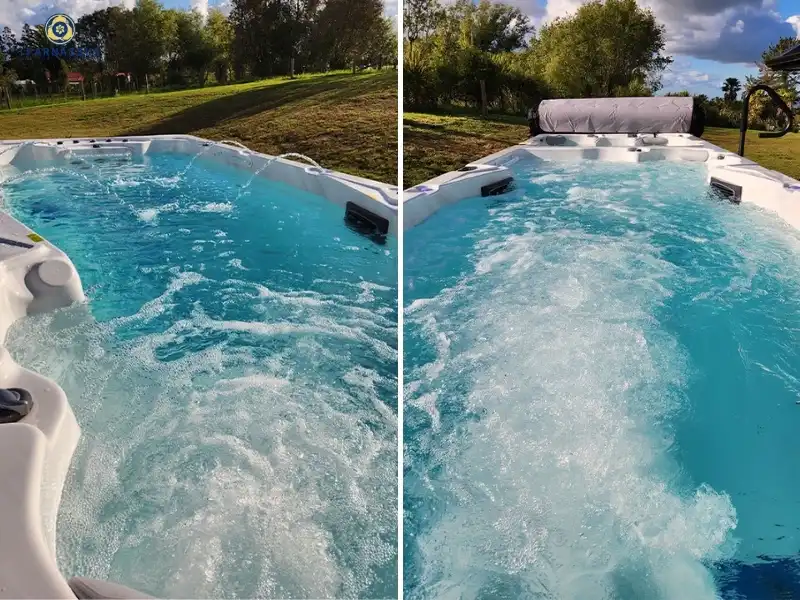

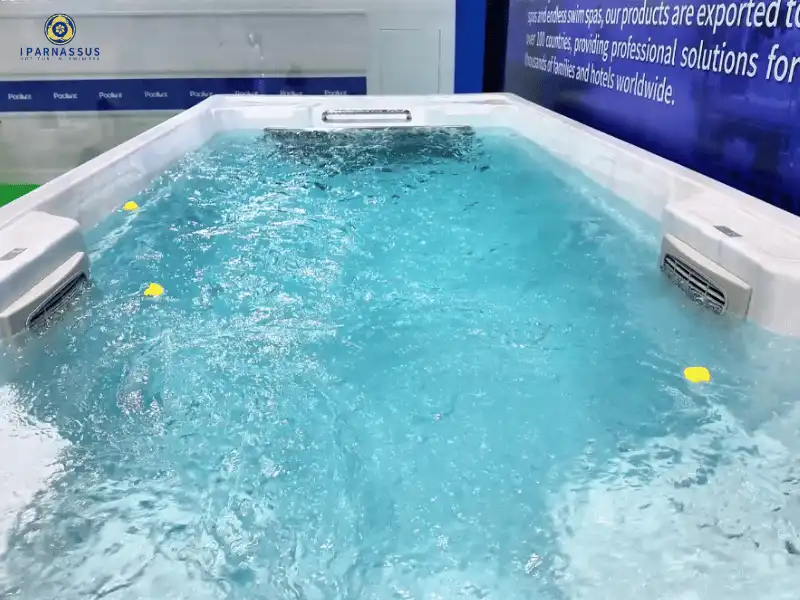

The 4D20 filters the water so that it stays clean between full changes. You should check the water's chemistry once a week and clean the filter cartridges once a month. Every three to four months, or more often if you use it a lot, you should drain and refill it completely. Scale doesn't build up in the jets and pipes because the chemistry stays the same. The 4D20's 12 side-wall jets and 3 large spa swimming jets are what make it work, so this is very important.

Insulation and Cover Use

Industry data shows that putting the insulated hard cover on the spa when it's not in use can save up to 70% of the heat. This right away lowers the cost of heating. If you live in a colder part of the U.S., you can save a lot of money each month by using a good cover with a heat pump instead of a regular electric heater.

Smart Control for Energy Savings

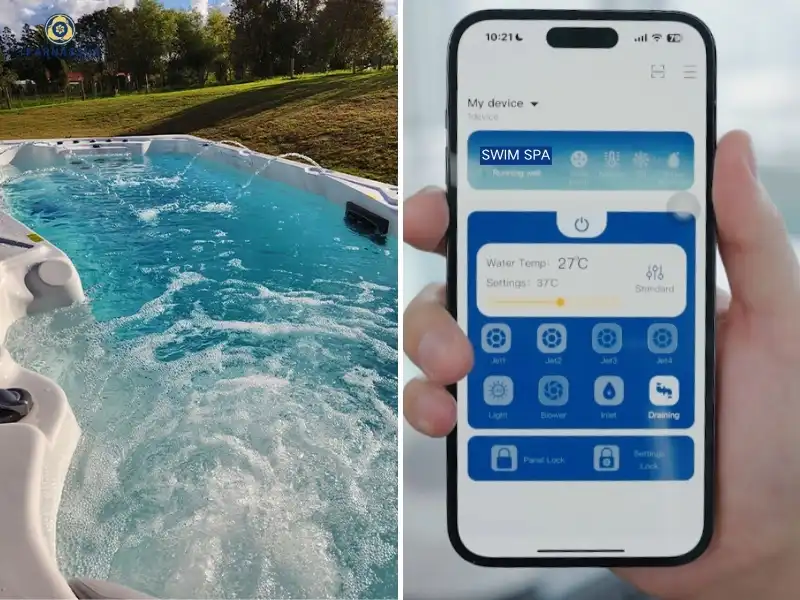

It is controlled by the iParnassus® smart control system, which checks the water level from afar and starts self-protection programs when temperatures get too high or too low. Hotel or resort property managers can connect it to bigger platforms for managing buildings. When you keep an eye on something from afar, you find problems before they become costly failures.

Common Installation Challenges and How to Avoid Them

Putting something in is always risky. Problems can be stopped before they happen if you know where they tend to happen.

Most of the time, these are the issues installers have with 4-meter swim spas: Service techs can't pump sections when decking or fencing is put too close to the unit. This is because not enough space was planned for during the design phase. Before you build anything else around maintenance routes, you should always make sure they are clear.

The electrical load was not taken into account. Four pumps running at the same time use a lot of energy. Breakers keep getting tripped by a small circuit, which makes the pump motor last less long. Always make the circuit a little bigger than what the maker says it should be. The base isn't level, which leads to long-term shell stress: even a small drop spreads the water load out unevenly. If you get a professional to look over the base before you put it down, you won't have to deal with plumbing leaks or problems with the shell warranty.

• Insufficient clearance planned at design stage: When decking or fencing is built too close to the unit, service technicians cannot reach pump compartments. Always finalize maintenance access routes before constructing surrounding structures.
• Underestimated electrical load: Four pumps running simultaneously draw significant amperage. An undersized circuit trips breakers repeatedly and degrades pump motor life. Always size the circuit to the manufacturer's specification with a safety margin.
• Unlevel base causing long-term shell stress: Even a small slope creates uneven water load distribution. A professional base inspection before placement avoids shell warranty issues and plumbing leaks down the line.

All of these issues can be fixed by getting trained experts to check them out right away. If you buy from an official iParnassus® provider, they can help you with the fitting and have 18 years of experience making spas and 80 patents in the field.

Conclusion

This is what you need to do before the unit arrives: check the ground, plan for clearance, figure out utility lines, and get any necessary local permits. The iParnassus® 4D20 will give you strong, continuous swim spa 4m currents from three 13.5-inch jets, focused treatment from 37 jets spread across four pumps, and smart controls that make daily management easy if you carefully prepare the area. The unit always does what it's supposed to do when the spot is right. Making this investment should be done with great care so that it works best for your property, guests, or clients.

FAQ

1. What is the minimum clearance required around a swim spa 4m unit?

Allow at least 1 meter on all sides. This accommodates safe user movement, maintenance access, and any future decking or privacy structures without blocking service panels.

2. How long does a typical 4-meter swim spa installation take?

Site preparation, including base construction and utility work, usually takes three to seven days. The actual placement, leveling, filling, and commissioning process typically adds one to two days. Total project time varies based on permit approval timelines in your municipality.

3. Can a swim spa be installed on a wooden deck?

Yes, but the deck must be engineered to handle the fully loaded weight — often exceeding 4,000 kg. A structural engineer should assess or design the deck framing before installation. Standard residential decks are rarely adequate without reinforcement.

4. Does the iParnassus® 4D20 integrate with hotel management systems?

The iParnassus® smart control system supports remote monitoring and scheduling functions that align with property management workflows, making it a practical choice for hoteliers and resort operators seeking automation.

5. What surface type is best for a 4-meter swim spa base?

A reinforced concrete pad is the most reliable choice. It provides consistent load distribution, resists moisture, and remains level under the sustained weight of a filled unit.

Ready to Source a Swim Spa 4M? Contact iParnassus® Today

iParnassus® has helped builders of villas, hotels, and resorts in North America, Europe, the Middle East, and Australia for 18 years. Our company makes swim spa 4m and has 80 patents and a full-fledged engineering team. We can help with everything, from making sure you get the right specs to providing service after the sale. Our business-to-business team can be reached at info@iparnassus.com to get a quote that fits your needs.
