What Size Space Does a Hot Tub 5 Person Need?

A hot tub 5 person model typically measures between 6'6" and 7'9" in length, 6'4" and 7'9" in width, and 2'7" to 3'2" in height. These dimensions reflect the standard footprint most five-seat spa units occupy. Beyond the shell itself, you need to account for clearance on all sides, structural load-bearing capacity, and utility access. Whether you're a hotel operator outfitting multiple suites or a villa developer planning a poolside retreat, understanding actual spatial demands is the critical first step before any procurement decision.

Understanding the Space Requirements for a 5-Person Hot Tub

Standard Dimensions and Water Capacity

Most acrylic hot tub 5-person units have a square size that is between 6'6" and 7'9". The water volume is between 300 and 400 gallons, which has a direct effect on the floor load estimate. Including the water, the shell, and the people who are in it, a filled acrylic spa can weigh between 3,500 and 4,500 pounds. For deck builders and structural engineers, that weight concentration is very important.

When deflated, inflatable types have a smaller footprint, but when filled, they take up the same amount of space. Their walls aren't as solid, so even though the outside measurements are the same, you lose useful space inside. Acrylic is still the most popular material for business dining settings that need to be durable and provide a great experience for guests.

Comparing 4-Person, 5-Person, and 6-Person Models

A spa for four people is usually about 6'0" to 6'6" square, and one for six people can get up to 8'0" to 9'0" square. The five-seat category is a good middle ground—it's big enough for a family or a small group of guests but small enough to fit on a normal resort patio or home deck without major structural changes. The APSP/ANSI 14-2019 American National Standard for Portable Spas says that both the maker and the installer are responsible for planning the space properly. This is why buyers need to ask for approved dimension sheets before they decide on site plans.

Key Factors to Consider When Planning Hot Tub Installation Space

Indoor vs. Outdoor Clearance Requirements

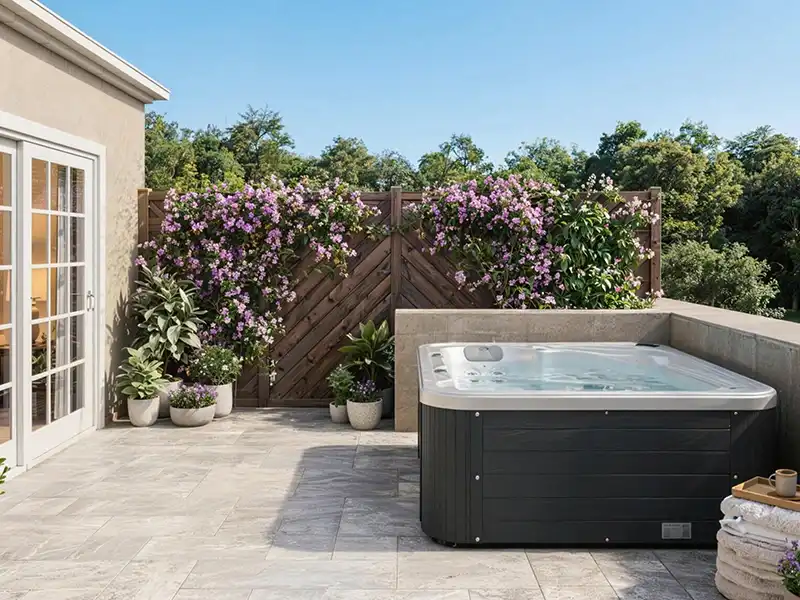

Most industry standards say that there should be at least 18 to 24 inches of side space on each available side. When installing a hot tub 5 person inside, ventilation is very important because too much humidity without enough movement speeds up the breakdown of structures and makes the air dangerous to breathe. Outdoor setups on rooftops or balconies need to pass structural load tests, especially if the spa is full and weighs more than 3,500 pounds on a squishy area.

Safety, Access, and Maintenance Space

In many parts of the U.S., safety rules say that there must be a clear path of at least 36 inches from where you enter the spa to the closest door or exit. Access for maintenance is also very important. You need to be able to easily reach the filter cells, pump housings, and control screens. Giving 24 inches of rear clearance for servicing keeps panels from having to be taken off for expensive repairs.

Here are the practical spatial benchmarks that site planners should confirm before delivery:

• Side clearance: At least 18 to 24 inches on each side that isn't a wall so that people can move safely and get out in an emergency.
• Rear/utility clearance: At least 24 inches behind the equipment bay to allow for electrical hookups, pump inspections, and filter changes.
• Floor load rating: Make sure the base can hold at least 100 to 125 pounds per square foot of a water-filled plastic spa.
• Overhead clearance: At least 7 feet is suggested to let the steam spread out and the cover be safely removed.

Comparing Different 5-Person Hot Tub Types and Their Spatial Needs

Inflatable vs. Acrylic: A Practical Trade-Off

Inflatable hot tub 5-person spas are truly movable and don't require fixed installation, but they don't have as good of jet performance, insulation, or structural longevity. A good acrylic model has 40 to 60 precisely aimed hydrotherapy jets, while an inflatable type usually has 100 to 140 air jets. The acrylic shell's durability and therapeutic effects make the bigger installation commitment worth it for resort developers and hotel operators who want to give their guests a consistent experience.

Brand Design Innovations and Their Footprint Impact

Well-known brands use space more efficiently in different ways. Jacuzzi and Caldera like to use classic rectangular shapes that fit easily with standard decking modules. The Bullfrog Spas use a JetPak system that is made up of separate modules. This system can change the internal layout but not the outside footprint too much. Master Spas has long, lounge-oriented designs that can make the length more than 8 feet, even in units with five seats, while a hot tub 5 person model can provide a more compact layout for homeowners who need to balance seating capacity with available space.

iParnassus® takes a distinct engineering approach with its 5R30 model. With its curved shapes and thin cabinet edges, the 5R30 makes the most of the space inside for seating without making the outside bigger. All of the seats are generously sized and have staggered jet arrangements that make them comfortable for people of all body types—a big plus in business dining settings where guests are a wide range of sizes and tastes. The lounge seat has jets that work on both the back and the legs, and the foot well is long enough to easily fit people up to 2 meters tall. A soaking position without jets serves guests who prefer passive immersion—or younger users who simply want to enjoy the warm water without hydrotherapy intensity. A long waterfall feature contributes to the ambient experience, and integrated internal steps eliminate the need for external step accessories, further reducing the total installation footprint.

Procurement Considerations for 5-Person Hot Tubs: Space & Installation Services

Site Measurement and Delivery Access

Before placing an order, site teams should measure not only the final installation area but also the whole transport path. This includes gate widths, hallway clearances, stairwell measurements, and crane access points in case the unit needs to be lifted to a higher terrace. A 7'6" wide spa shell can't get through a 6'8" gate, and changing the times of crane operations adds a lot to the project cost.

Custom orders can better match spa sizes to tight site conditions, and reputable hot tub 5-person suppliers like iParnassus® offer configuration help during the pre-order phase. People who want to buy something and have a budget between $4,000 and $9,000 can usually get help with installation and a longer warranty as part of the deal. After-sales support—including remote diagnostics through smart control systems—reduces long-term service space requirements by enabling off-site troubleshooting before a technician visit becomes necessary.

Best Accessories and Maintenance Tips for Optimizing Your Hot Tub Space

With the right tools, the area around a Hot Tub 5 Person spa can be used much more efficiently. Thermal covers with a comfortable lift help you not need large storage spaces because the cover folds back on itself, so it doesn't need a separate stand. Chemical storage cabinets that fit flush against the spa cabinet make treatment supplies easy to get to without taking up extra space on the deck.

Maintenance scheduling also shapes spatial efficiency. Setting up a weekly filter rinse and a monthly deep clean schedule will keep you from having to clear out big areas around the spa for routine maintenance. Smart control platforms, such as the iParnassus® smartphone-integrated system, send real-time status messages and automatic water refill reminders. This lets workers handle small problems from afar before they need to be fixed physically. This feature is especially useful for hotel management teams that are in charge of keeping an eye on many units on a property.

Conclusion

To plan the right space for a hot tub 5 person, you need to do more than just measure the shell. The overall spatial equation is made up of structural load, clearance buffers, repair access, and supply operations. The iParnassus® 5R30 shows how careful engineering, like curved edges, built-in steps, and a small equipment plan, can create a full-featured spa experience in a space that works for both home decks and business hospitality settings. Taking these factors into account during the buying phase saves money on changes that need to be made after the installation and guarantees a smooth experience for guests and residents from the start.

FAQ

1. What is the minimum clearance required around a 5-person hot tub?

Most assembly instructions say that there should be at least 18 to 24 inches of space on each side that can be reached and 24 inches of space behind the equipment bay. These clearances allow safe movement for users, emergency exit, and regular maintenance without having to take off panels.

2. Can a 5-person hot tub sit on a standard residential deck?

A lot of common decks for homes are built to hold 40 to 60 pounds per square foot. When it's full, a 5-person hot tub can weigh more than 100 pounds per square foot, so the structure usually needs to be strengthened before it can be installed. Before placement, you should always talk to a licensed structural engineer.

3. How does a smart control system affect spatial planning?

Smart control platforms make it possible for remote diagnostics, monitoring of water levels, and automatic alerts, which reduce the physical service footprint. This means that technicians won't have to come to the spa as often and won't have to store as much equipment next to it, which is great for businesses with limited space.

4. How much water does a 5-person hot tub hold?

Most plastic spas with five seats can hold between 300 and 400 gallons of water. Water alone adds about 2,500 to 3,340 pounds to the total installed weight, which is an important number for load-bearing calculations.

Explore iParnassus® Five-Person Spa Solutions for Your Next Project

Every unit that iParnassus® makes is backed by our 18 years of experience making spas and our 80 registered patents. Custom setups, smart control integration, and commercial-grade sturdiness are just a few of the things that our hot tub 5 person manufacturer can do. It's made for hotel owners, resort developers, and villa builders who can't skimp on guest satisfaction or working efficiency. Reach our commercial team directly at info@iparnassus.com to discuss site-specific requirements and procurement logistics.

References

1. APSP/ANSI 14-2019 – American National Standard for Portable Electric Spas. Association of Pool & Spa Professionals, 2019.

2. Hot Tub & Swim Spa Market Report: North America & Europe. Pool & Hot Tub Alliance (PHTA), 2023.

3. U.S. Consumer Product Safety Commission – Safety Barrier Guidelines for Pools and Spas, CPSC Publication No. 362, 2023.

4. Residential Structural Load Guidelines for Outdoor Structures. American Society of Civil Engineers (ASCE 7-22), 2022.

5. Kowalsky, M. – Hydrotherapy and Balneotherapy: Clinical Evidence and Applications. Journal of Aquatic Physical Therapy, Vol. 29, No. 2, 2021.

6. Energy Efficiency Standards for Residential Spas and Hot Tubs. California Energy Commission, Appliance Efficiency Program, 2022.
